DC inverter system
Inverter technology varies compressor operation to respond to the zone.
Apex Single
Mini-split heat pumps.
A matched system for a single zone
Apex pairs a wall-mounted indoor unit with an outdoor heat pump to serve a single zone.
Plan comfort around the space you use, with equipment selected for its heating and cooling requirements.

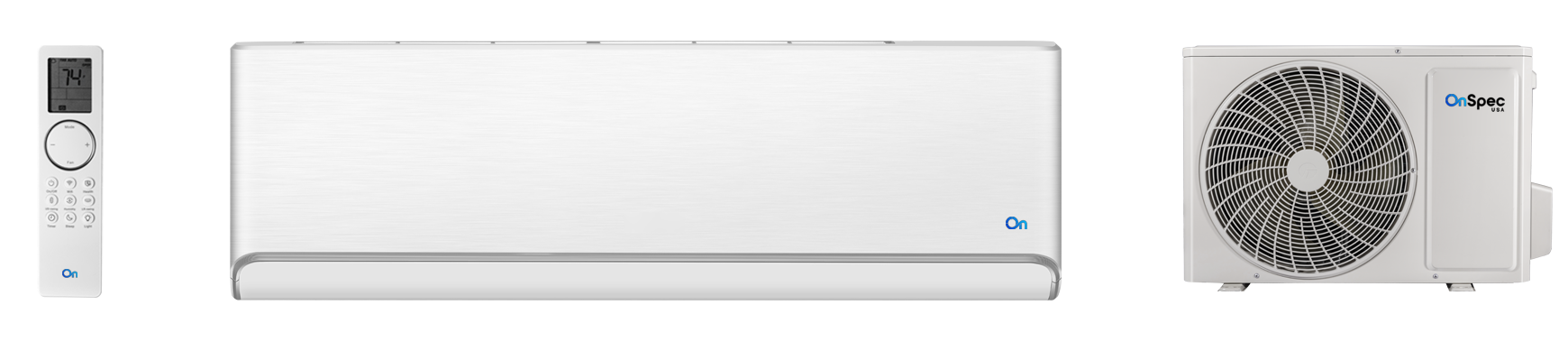

Indoor unit and outdoor heat pump
The wall-mounted indoor unit delivers conditioned air while its matched outdoor unit provides heating and cooling.
- SEER2
- 30.0
- HSPF2
- 11.2
- Refrigerant
- R32
Apex 9,000 BTU/h size class. See model specifications and rating conditions.
Seven fan speeds
Adjust airflow with seven indoor fan speeds and horizontal and vertical auto swing.
Wi-Fi included
Factory-installed Wi-Fi and an LCD wireless remote provide control options.
Low-ambient heating and cooling
Cooling down to -20°F (range -20°F to 122°F). Heating down to -22°F (range -22°F to 86°F).
Indoor auto-clean
Auto-clean and a dirty-filter alert support routine indoor-unit care.
Defrost and preheating
Intelligent defrosting and preheating are included, with electric basepan and compressor heaters.
Match the zone to the system
For a room addition, renovation or defined living area, use a professional load calculation to establish the heating and cooling requirement.
Compare Apex models
- Rated cooling at 95 F
- 9,100 BTU/h
- Rated heating at 47 F
- 10,600 BTU/h
- SEER2 / EER2 / HSPF2
- 30.0 / 16.8 / 11.2
- Rated heating at 5 F
- 11,500 BTU/h
- COP at 5 F
- 2.11
- Indoor sound pressure (min - max)
- 23 - 42 dB(A)
- Indoor airflow (min - max)
- 265 - 506 CFM
- Power supply
- 208-230 V / 1 phase / 60 Hz
- Refrigerant
- R32
- Liquid / gas connection
- 1/4 in. / 1/2 in.
- Submittal model pair
- OSAPX09H2301AH / OSAPX09H2301AO
Values from the 9K Apex submittal. Nominal size and rated capacity are distinct; refer to the complete document for conditions and installation requirements.
Dimensions and installation data
- Indoor dimensions (W x H x D)
- 38-3/16 x 13-21/32 x 10-1/8 in.
- Outdoor dimensions (W x H x D)
- 34-3/8 x 21-27/32 x 14-51/64 in.
- Indoor / outdoor net weight
- 33.1 / 78.3 lb
- Piping length (min - max)
- 10 - 131 ft
- Maximum piping elevation
- 82 ft
- Pre-charge length
- 25 ft
- Minimum circuit ampacity
- 11 A
- Maximum overcurrent protection
- 15 A
Refer to the full submittal drawings for service clearances, piping conditions and electrical requirements.
Apex submittals
Model-specific performance, dimensions and installation requirements.
Apex 9K
PDF, 4 pages
Apex 12K
PDF, 4 pages
Apex 18K
PDF, 4 pages
Apex 24K
PDF, 4 pages
Use the submittal for the exact model under consideration. Project sizing and installation requirements should be reviewed by a qualified HVAC professional.
Selecting an Apex system
Review sizing, building conditions and installation requirements with your project team.
Discuss your projectHow should I choose a size class?
Start with a room-by-room heating and cooling load calculation. Floor area alone does not account for glazing, exposure, insulation, occupancy or climate. The listed size classes are a starting point for a conversation, not an automatic sizing recommendation.
What needs to be checked before installation?
Ask your installer to review the indoor and outdoor locations, service access, electrical supply, piping route and condensate drainage. Final limits and clearances should be checked against the product instructions for the exact system.
Can one system serve several rooms?
Apex is a single-zone system. Ask your HVAC professional to evaluate the room layout and air distribution when selecting equipment for connected or separate spaces.
Controls and accessories
Wireless control, with Wi-Fi included.
Apex submittals include a wireless LCD remote, factory-installed Wi-Fi and a wired-controller interface. Ask about the wired-controller option for your project.
Request compatibility informationTalk through your Apex project
Share your project location, system requirements and the model you are considering.
Ask a technical question
For system selection and installation, consult a qualified HVAC professional. Project requirements and local codes apply.
